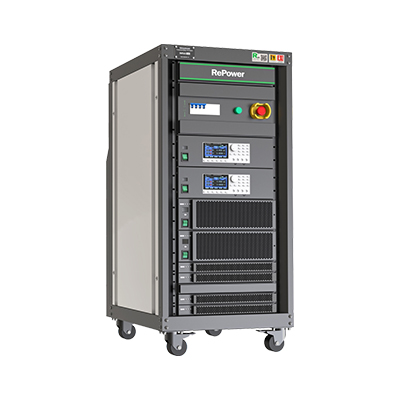

ATE System
OVERVIEW
Applied in performance testing and quality control of power battery pack of e-tool, e-bike, e-motorcycle, e-vehicle, and battery module of energy storage base.
ADVANTAGES
- Soft-start for current output, avoid current shock.
- Current source open-circuit and voltage-limiting design, avoid high voltage output.
- Each channel is with independent and programmable constant voltage source and constant current source.
- Support multi-channel independent testing simultaneously, improving efficiency and production capacity.
- Support lithium battery pack solutions for the same port, different port, hardware and software versions.
- Support to read, write and comparison of Gas Gauge data in protection board of finished/semi-finished PACK.
- Software detects the battery and tests it automatically and record testing result.
FUNCTION TEST
- OCV test
- DCIR tes
- Charge / discharge over-current protection test
- ID resistance test
- NTC resistance test
- AC impedance test
- Over current delay test
- Load capacity test
specification
| Model | GGC-60V~200V 60A~300A | ||||
|---|---|---|---|---|---|
| Charge Voltage | Output Voltage | 6~60V | 12~200V | ±0.05% FS | 1mV |
| Voltage Measurement | 6~60V | 12~200V | ±0.05% FS | 1mV | |
| Discharge Voltage | Voltage Measurement | 6~60V | 12~200V | ±0.05% FS | 1mV |
| Charge Current | Output Current | 0.1~60A | 0.1~300A | ±0.05% FS | 1mA |
| Current Reading | 0.1~60A | 0.1~300A | ±0.05% FS | 1mA | |
| Discharge Current | Output Current | 0.1~60A | 0.1~300A | ±0.05% FS | 1mA |
| Current Reading | 0.1~60A | 0.1~300A | ±0.05% FS | 1mA | |
| Charge/discharge Over-current Protection testing | Time Range | 0~60000mS | 0~60000mS | 0.1% | 1mS |
| Voltage | 0~60V | 0~300V | ± (0.01%rdg+10dgt) | 1mV | |
| ACR | Impedance | 0.001mΩ~3mΩ | 3mΩ~3KΩ | ± (0.5%rdg+10dgt) | 0.001mΩ |
| Resistance Measurement | IDR | 0.01KΩ~1MΩ | 0.1% | 1Ω | |
| NTC | 0.01KΩ~1MΩ | 0.1% | 1Ω | ||
| Basic function test | OCV test | ||||
| Comparison test of OCV difference | |||||
| Charge Performance Test | |||||
| Discharge Performance Test | |||||
| Wake Up | |||||
| Comparison test of charging current accuracy | |||||
| Comparison test of discharge current accuracy | |||||
| ACR impedance test | |||||
| Load impedance test | |||||
| Charge Over current protection and recovery test (OCP) | |||||
| Discharge Over current protection and recovery test (OCP) | |||||
| Charge and discharge DCR test | |||||
| Cell voltage sampling test | |||||
| Cell temperature sampling test | |||||
| SOC test | |||||
| Software and hardware version reading test | |||||
| Communication function | CANBUS / RS485 / RS232 / I2C / SUMBUS etc. | ||||
