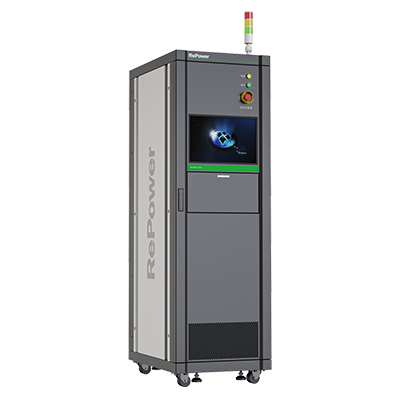

ATE System
OVERVIEW
Applied in e-vehicle, e-bus, energy storage base, PACK EOL testing, and quality control.
ADVANTAGES
- Integrated high-precision meter, reliable and standard testing result.
- Support production verification and research-oriented test for R&D.
- High compatibility, satisfy different testing requirements on module, mono box, and PACK unit.
- Functional module is expandable as required.
- Intelligent and automatic work process to save labors and improve testing efficiency.
- Exclusive open software platform, support instruments and meters of other brands.
- Software supports the analysis of various BMS communication protocols, pass-through analyze, without any algorithm process.
- Testing function and project development can be customized as required.
FUNCTION TEST
- Insulation detect test
- Vehicle / charging / CAN communication function test
- UDS communication function test
- Single battery / total voltage precision test
- Fast charge / slow charge / pre-charge function test
- SOC function test
- Relay ON/OFF test
- Total current precision test
specification
Models | EOL-M-60V-200V / EOL-PACK-100V-1500V | |
|---|---|---|
| AC pararmeters | Wiring method | AC single-phase three-wire |
| Rated power | 3.5kW | |
| Power supply voltage | 220±10% VAC | |
| Power supply frequency | 50±5% Hz | |
| Safety performance test | Insulation resistance test | |
| DC voltage withstand test | ||
| AC voltage withstand test | ||
| DC Equipotential test | ||
| AC Equipotential test | ||
| High-voltage interlock function test | ||
| Zero-drift testing | ||
| Insulation leakage simulation test | ||
| Collision signal test | ||
| Basic function test | OCV | |
| AC internal resistance | ||
| Low voltage power consumption test | ||
| BMS data reading and sending | ||
| Relay ON/OFF test | ||
| Program burning | ||
| Slow charging signal test | ||
| Fast charging signal test | ||
| Balancing function test | ||
| Heating function test | ||
| SOC function test | ||
| Current accuracy test | ||
| DCIR test | ||
| Other parameters | IP grade | IP20 |
| Working temperature | 0℃~40℃ | |
| Cooling method | Forced Fan-cooled | |
| Noise | < 75dB | |
| Cabinet size (W*D*H mm) | 600*850*1980 | |
