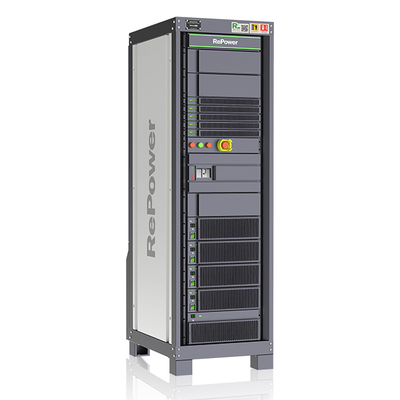

ATE System
OVERVIEW
Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
ADVANTAGE
- Support single battery voltage consistence test
- Support multi-channel parallel;
- Power factor value up to 0.99
- Anti-reverse connection and data protection
- Battery discharge and energy feedback efficiency ≥92%
- Modular design, easy for maintenance
- Support RS485/CAN battery pack communication protocol, CAN communication baud rate is changeable
- Support DBC import at one-click
- Support user-defined BMS values as control/protection parameters
- Support slope charging and discharging
- User-defined login management rights are supported
FUNCTION TEST
- Cycle life test
- Battery capacity test
- Current-soc matrix test
- Static / dynamic SOC test
- Charging / discharging test
- Temperature characteristic test
- BMS follow test
- DCIR test
specification
| Models | RCDS-100V~600V | |
|---|---|---|
| AC Parameters | Wiring method | Three-phase five-wire system |
| Power supply voltage | 380±10% VAC | |
| Power supply frequency | 50±5% Hz | |
| Power factor | > 0.99 | |
| Max. power feedback efficiency | ≥ 90% | |
| THD | < 5% | |
| DC Parameters | Total output power | 10KW~120KW |
| Output current | 100A / 150A / 200A / 300A / 400A / 600A | |
| Single channel voltage range | 100V~600V | |
| Voltage accuracy | ± 0.05% F.S | |
| Voltage resolution | 1mV | |
| Current accuracy | ± 0.05% F.S | |
| Current resolution | 1mA | |
| Current start response time | 10ms (10%~90%F.S) | |
| Current switching time | 20ms (~90%~90%F.S) | |
| Software Function | Charging mode | CC, CV, CCCV, CP, Slope etc. |
| Discharge mode | CC, CV, CP, CR, DCCV, Slope etc. | |
| Other working mode | Still, Working condition test, Pulse test (pulse width 20ms), DCIR etc. | |
| Test cut-off condition | Battery voltage, current, time, capacity, temperature, BMS parameters etc. | |
| Data export format | Excel, TXT etc. | |
| Data recording interval | 10ms | |
| Editable step | Max. 10000 | |
| Programmable step | Max. 10000 | |
| Nested loop | Max. 10 layers | |
| Software protection | OCP/OVP/Reverse or wrong connection protection/ Protection for abnormal communication | |
| Third-party device integration | Supports linkage of temperature box, MTV/MTS, and I/O control box | |
| Other Parameters | IP grade | IP20 |
| Working temperature | 0℃~40℃ | |
| Cooling method | Forced Fan-cooled | |
| Noise | < 75dB | |
| Cabinet size (W*D*H mm) | 600*800*2000 | |
