N62300 Series

Main Features

• Voltage: 0–80V, Current: 0–30A, Power: 0–200W
• VoltageAccuracy: 0.05% + 0.1% F.S.; CurrentAccuracy: 0.1% + 0.1% F.S.
• Portable design with optional 4U standard rack mounting for up to 6 load channels
• Supports OVP , OCP , OPP, and OTP
• Features Von/Voff functionality and simulated short-circuit capability
• Dual-range design for voltage, current, resistance, and power, ensuring broad measurement coverage
• CommunicationInterfaces: RS485 and LAN (for debugging purposes)

Functions & Advantages

Application Fields

• Testing of AC/DC power supplies, DC/DC converters, and other low-power power modules
• Testing of consumer electronics such as smartphones and mobile devices
• Testing of low-power batteries for drones, portable devices, and similar applications

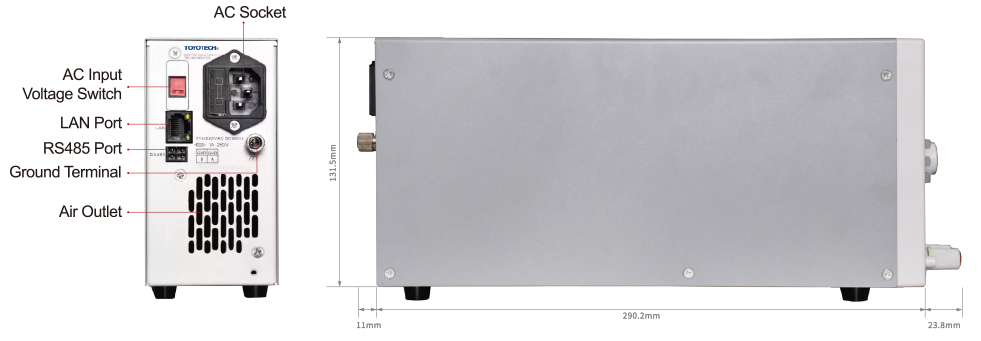

Product Dimension
