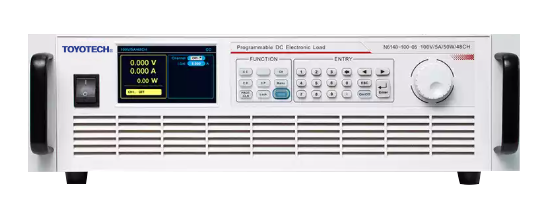

N6148 Series

Main Features

N6148 series is a multi-channel programmable DC electronic load, with high reliability, high integration, high accuracy. It is tailored for integrated applications, featuring in high communication response speed and high stability. N6148 series is with 19-inch 3U size, up to 48 channels and supports communication interfaces LAN and RS485. In most integrated applications, N6148 series can replace low-power standalone electronic loads and save much cost for users.

Application Fields

• R&D, production, aging and QC of DC/DC converters, power products
• Test of automotive wiring harness, connectors, fuses, relays, BEC(Bussed Electrical Center)

Functions & Advantages

• Power range: 0~50W
• Voltage range: 0~100V
• Current range: 0~5A
• Basic accuracy: 0.5%F.S.
• Operation Mode: CC/CP/CR
• Equipped with LCD screen, knob and button, convenient for local operation
• High integration, single device up to 48 channels
• Supporting OCP test,Von/Vofffunction
• Multiple protection: OCP/OVP/OPP/OTP
• Built-in RS485 interface and LAN port
• Communication protocol: SCPI, Modbus

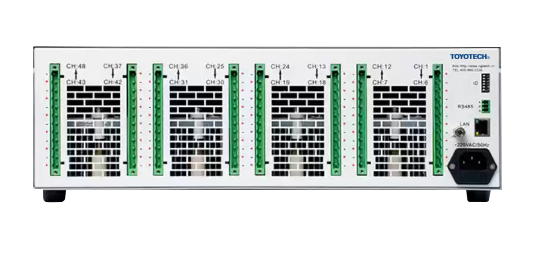

Ultra-high integration, single device with up to 48 channels

N6148 series multi-channel DC electronic load supports up to 48 channels in a single device with modular design. Each module integrates 6 power channels. The ultra-high integration makes N6148 a competitive selection for multi-channel batch test applications.

OCP (over current protection) test

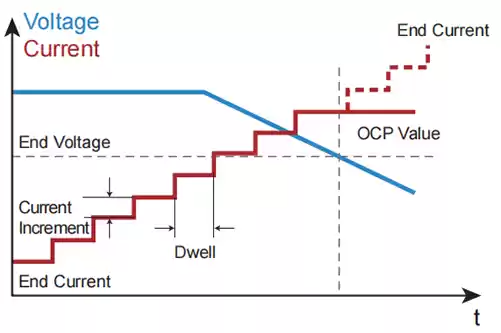

During OCP test, N6148 will load under CC mode and check whether the DUT voltage is lower than end voltage. If lower, N6148 will record the present loading current as the test result and shut the input to stop the test. If the DUT voltage is higher than end voltage, N6148 will increase the loading current until the DUT voltage is lower than end voltage or it reaches the Max. loading current.

Settable Von/Voff

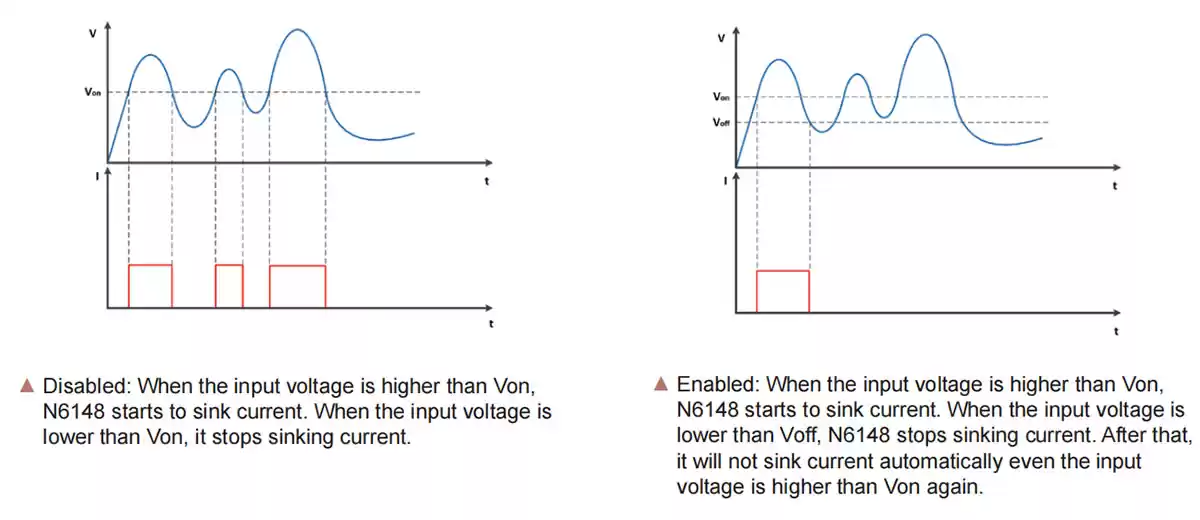

The Von latch function has two modes to meet your various test needs: enabled and disabled.

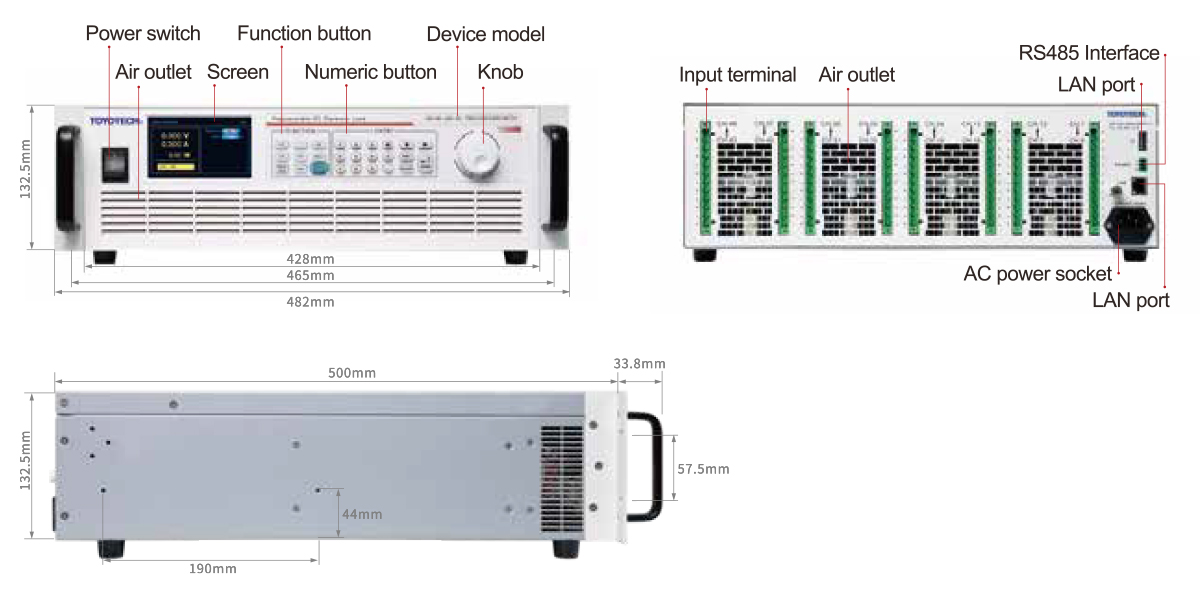

Product Dimension
