EX Series

DC 출력 :: 600W ~ 100KW, 1CH

분해능 :: 4 Digit

Protection :: OVP, OCP, OVL, OCL, UVL, UCL

통신 :: RS-232, RS-485 기본 장착, TCP-IP (유상 옵션)

데이터시트 매뉴얼 목록보기

설명 Description
사양 Specification
옵션 Option

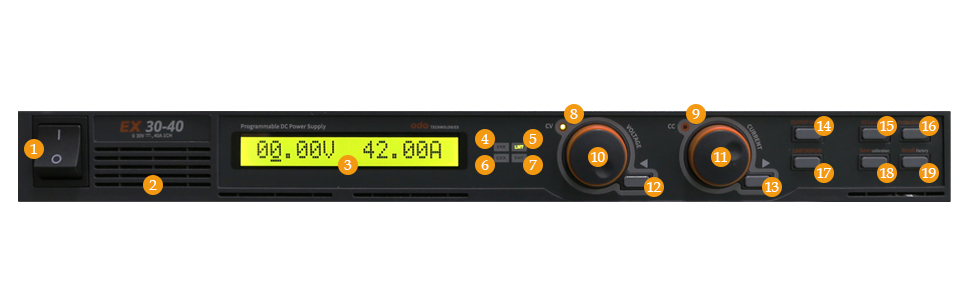

1	메인전원 ON/OFF 스위치	11	전류 조정 Encoder
2	환기구	12	전압 Cursor 또는 메뉴 변경 Key
3	16Char 타입 LCD Display	13	전류 Cusor 또는 메뉴변경 Key
4	Error Lamp	14	출력전압/전류 ON/OFF
5	Limit Display Lamp	15	IO/Local설정 및 Error Display Key
6	Key Lock Lamp	16	Protection 설정 및 Front-panel Lock Key
7	Remote Interface Lamp	17	전압/전류 설정값 Display Key
8	CV 램프	18	Save 또는 Calibration Key
9	CC 램프	19	Recall 또는 Factory Key
10	전압 조정 Encoder

기본 기능

4-Digit Resolution 디스플레이
8 Character , 2 line LCD 디스플레이
엔코더를 이용한 쉬운 전압 전류 셋팅
CV/CC 모드
원격 전압 감지
OVP, OCP 보호 모드 제공
전압 하한값(U.V.L), 상한값(O.V.L), 전류 하한값(U.C.L), 상한값(O.C.L) Level 셋팅기능
교정 기능 제공(메뉴얼 및 PC 기반)
패널 잠금 기능 제공
Memory Store & Recall 기능 제공(10개 저장 가능)
출력 ON/OFF 기능 제공
11개 다양한 Factory Mode 기능 제공
RS-232C, RS-485 통신 기본제공(TCP/IP 통신 옵션)
단상, AC 입력 220VAC ±10%
SLIM TYPE
EX Series는 2500W의 전원공급장치가 19inch x 1U 사이즈로 설계되어 최고의 공간적 효율성을 갖고 있는 슬림형 제품입니다.
Linear DC 전원공급장치에 비해 혁신적인 사이즈와 무게를 경험해보시기 바랍니다.
PROTECTION MODE
내장된 OVP(Over Voltage Protection) 및 OCP(Over Current Protection) Protection 모드는 사용 중 과전압, 과전류가 출력되었을 때 출력을 차단하여 부하원을 보호합니다.
사용자의 부주의나 장시간의 테스트 시에도 안전하게 사용할 수 있습니다.
DUAL CONTROL ENCODER
전압 및 전류에 각각 배정된 컨트롤 엔코더는 기존에 단일 컨트롤 엔코더에 비해 보다 빠르게 원하는 설정을 가능하게 합니다.
Programmable 제품을 처음 접하는 사용자도 쉽게 사용하도록 설계되어 광범위한 사용이 가능합니다.
MEMORY STORE & RECALL
사용자가 설정한 전압 및 전류, 사용 상태 등을 저장(Store) 및 호출(Recall)할 수 있습니다.
전문 엔지니어가 아니더라도, 미리 설정하여 저장해둔 Memory를 호출하는 기능으로 생산 및 제품 검사, 신뢰성 테스트 등에 쉽게 활용할 수 있습니다.

제품 사이즈

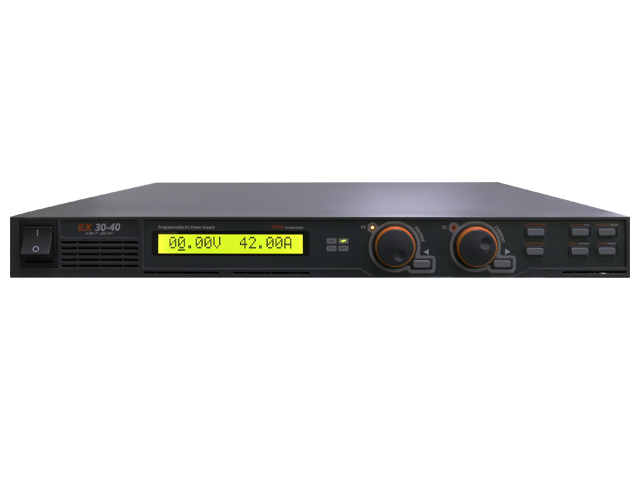

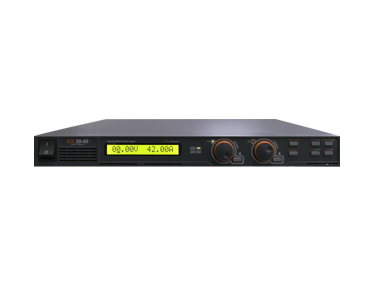

1U Size(600W~2.5kW)19inch wide (426mm) Standard, 1U height(44mm)

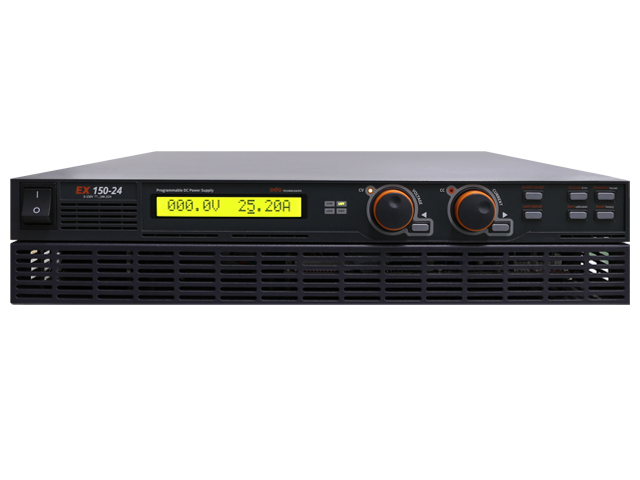

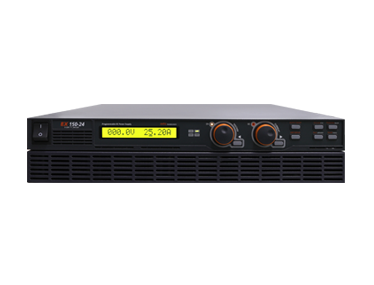

2U Size(3.75KW~5KW)19inch wide(426mm) Standard, 2U height(88mm)

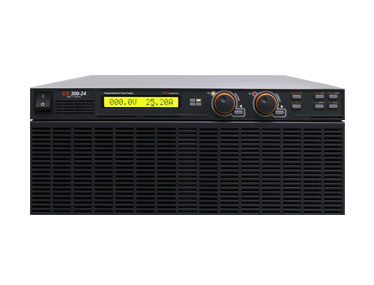

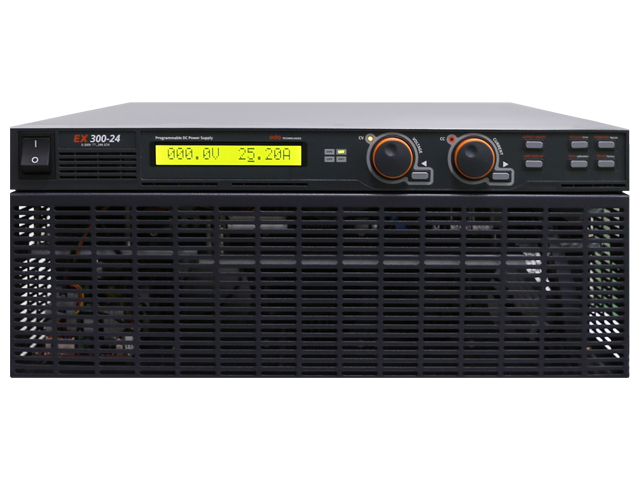

4U Size(6KW~10KW)19inch wide(426mm) Standard, 4U height(176mm)

제품 사양 및 라인업

*표시된 제품은 CE인증된 모델입니다.

Parameter	Output Rating (@ 0℃ ~ 40℃)		Line&Load Regulation (%0.1+offset)	Programming Accuracy @25℃(@0.1+offset)		Readback Accuracy @25℃(@0.1+offset)		Ripple & Noise (@20Mhz)RMS Value	Display Resolution		Weight	Efficiency (Typical)
Model	V	A		V	A	V	A		V	A		%
1U Size 426mm(W)*44mm(H) : 600W ~ 2.5kW
EX20-30*	0~21	0~31.5	≤ 0.1%	30mV	95mA	20mV	63mA	10mV	0.01	0.01	6.25Kg	80
EX20-60*	0~21	0~63	≤ 0.1%	30mV	189mA	20mV	126mA	10mV	0.01	0.01	7.5Kg	80
EX20-90*	0~21	0~94.5	≤ 0.1%	30mV	284mA	20mV	189mA	10mV	0.01	0.01	8.75Kg	80
EX20-120*	0~21	0~126	≤ 0.1%	30mV	378mA	20mV	252mA	15mV	0.01	0.1	13Kg	80
EX30-20*	0~31.5	0~21	≤ 0.1%	45mV	63mA	30mV	42mA	10mV	0.01	0.01	6.25Kg	82
EX30-40*	0~31.5	0~42	≤ 0.1%	45mV	126mA	30mV	84mA	10mV	0.01	0.01	7.5Kg	82
EX30-60*	0~31.5	0~63	≤ 0.1%	45mV	189mA	30mV	126mA	10mV	0.01	0.01	8.75Kg	82
EX30-80*	0~31.5	0~84	≤ 0.1%	45mV	252mA	30mV	168mA	10mV	0.01	0.01	10Kg	82
EX50-12*	0~52.5	0~12.6	≤ 0.1%	75mV	38mA	50mV	25mA	10mV	0.01	0.01	6.25Kg	85
EX50-24*	0~52.5	0~25.2	≤ 0.1%	75mV	76mA	50mV	50mA	10mV	0.01	0.01	7.5Kg	85
EX50-36*	0~52.5	0~37.8	≤ 0.1%	75mV	113mA	50mV	76mA	10mV	0.01	0.01	8.75Kg	85
EX50-48*	0~52.5	0~50.4	≤ 0.1%	75mV	151mA	50mV	101mA	10mV	0.01	0.01	10Kg	85
EX60-10	0~63	0~10.5	≤ 0.1%	90mV	32mA	60mV	21mA	10mV	0.01	0.01	6.25Kg	85
EX60-20	0~63	0~21	≤ 0.1%	90mV	63mA	60mV	42mA	10mV	0.01	0.01	7.5Kg	85
EX60-30	0~63	0~31.5	≤ 0.1%	90mV	95mA	60mV	63mA	10mV	0.01	0.01	8.75Kg	85
EX60-40	0~63	0~42	≤ 0.1%	90mV	126mA	60mV	84mA	10mV	0.01	0.01	10Kg	85
EX80-7.5	0~84	0~7.875	≤ 0.1%	120mV	24mA	80mV	16mA	10mV	0.01	0.001	6.25Kg	85
EX80-15	0~84	0~15.75	≤ 0.1%	120mV	47mA	80mV	32mA	10mV	0.01	0.01	7.5Kg	85
EX80-22.5	0~84	0~23.6	≤ 0.1%	120mV	71mA	80mV	47mA	10mV	0.01	0.01	8.75Kg	85
EX80-30	0~84	0~31.5	≤ 0.1%	120mV	95mA	80mV	63mA	10mV	0.01	0.01	10Kg	85
EX100-6	0~105	0~6.3	≤ 0.1%	150mV	19mA	100mV	13mA	10mV	0.1	0.001	6.25Kg	85
EX100-12	0~105	0~12.6	≤ 0.1%	150mV	38mA	100mV	25mA	10mV	0.1	0.01	7.5Kg	85
EX100-18	0~105	0~18.9	≤ 0.1%	150mV	57mA	100mV	38mA	10mV	0.1	0.01	8.75Kg	85
EX100-24	0~105	0~25.2	≤ 0.1%	150mV	76mA	100mV	50mA	10mV	0.1	0.01	10Kg	85
EX150-4	0~157.5	0~4.2	≤ 0.1%	225mV	13mA	150mV	8mA	15mV	0.1	0.001	6.25Kg	85
EX150-8	0~157.5	0~8.4	≤ 0.1%	225mV	25mA	150mV	17mA	15mV	0.1	0.001	7.5Kg	85
EX150-12	0~157.5	0~12.6	≤ 0.1%	225mV	38mA	150mV	25mA	15mV	0.1	0.01	8.75Kg	85
EX150-16	0~157.5	0~16.8	≤ 0.1%	225mV	50mA	150mV	34mA	15mV	0.1	0.01	10Kg	85
EX200-3	0~210	0~3.15	≤ 0.1%	300mV	9mA	200mV	6mA	15mV	0.1	0.001	6.25Kg	85
EX200-6	0~210	0~6.3	≤ 0.1%	300mV	19mA	200mV	13mA	15mV	0.1	0.001	7.5Kg	85
EX200-9	0~210	0~9.45	≤ 0.1%	300mV	28mA	200mV	19mA	15mV	0.1	0.001	8.75Kg	85
EX200-12	0~210	0~12.6	≤ 0.1%	300mV	38mA	200mV	25mA	15mV	0.1	0.01	10Kg	85
EX300-2*	0~315	0~2.1	≤ 0.1%	450mV	6mA	300mV	4mA	25mV	0.1	0.001	6.25Kg	85
EX300-4*	0~315	0~4.2	≤ 0.1%	450mV	13mA	300mV	8mA	25mV	0.1	0.001	7.5Kg	85
EX300-6*	0~315	0~6.3	≤ 0.1%	450mV	19mA	300mV	13mA	25mV	0.1	0.001	8.75Kg	85
EX300-8*	0~315	0~8.4	≤ 0.1%	450mV	25mA	300mV	17mA	25mV	0.1	0.001	10Kg	85
EX600-1	0~630	0~1.05	≤ 0.1%	900mV	3mA	600mV	2mA	60mV	0.1	0.001	8.75Kg	85
EX600-2	0~630	0~2.1	≤ 0.1%	900mV	6mA	600mV	4mA	60mV	0.1	0.001	8.75Kg	85
2U Size 426mm(W)*88mm(H) : 3.75KW ~ 5KW
EX20-180	0~21	0~189	≤ 0.1%	30mV	567mA	20mV	378mA	15mV	0.01	0.1	15.5Kg	80
EX20-240	0~21	0~252	≤ 0.1%	30mV	756mA	20mV	504mA	15mV	0.01	0.1	18Kg	80
EX30-120*	0~31.5	0~126	≤ 0.1%	45mV	378mA	30mV	252mA	15mV	0.01	0.1	15.5Kg	82
EX30-160*	0~31.5	0~168	≤ 0.1%	45mV	504mA	30mV	336mA	15mV	0.01	0.1	18Kg	82
EX50-72	0~52.5	0~75.6	≤ 0.1%	75mV	227mA	50mV	151mA	15mV	0.01	0.01	15.5Kg	85
EX50-96	0~52.5	0~100.8	≤ 0.1%	75mV	302mA	50mV	202mA	15mV	0.01	0.01	18Kg	85
EX60-60	0~63	0~63	≤ 0.1%	90mV	189mA	60mV	126mA	15mV	0.01	0.01	15.5Kg	85
EX60-80	0~63	0~84	≤ 0.1%	90mV	252mA	60mV	168mA	15mV	0.01	0.01	18Kg	85
EX80-45	0~84	0~47.25	≤ 0.1%	120mV	142mA	80mV	95mA	15mV	0.01	0.01	15.5Kg	85
EX80-60	0~84	0~63	≤ 0.1%	120mV	189mA	80mV	126mA	15mV	0.01	0.01	18Kg	85
EX100-36	0~105	0~36	≤ 0.1%	150mV	113mA	100mV	76mA	15mV	0.1	0.01	15.5Kg	85
EX100-48	0~105	0~50.4	≤ 0.1%	150mV	151mA	100mV	101mA	15mV	0.1	0.01	18Kg	85
EX150-24	0~157.5	0~25.2	≤ 0.1%	225mV	76mA	150mV	50mA	15mV	0.1	0.01	15.5Kg	85
EX150-32	0~157.5	0~33.6	≤ 0.1%	225mV	101mA	150mV	67mA	15mV	0.1	0.01	18Kg	85
EX200-18	0~210	0~18.9	≤ 0.1%	300mV	57mA	200mV	38mA	30mV	0.1	0.01	15Kg	85
EX200-24	0~210	0~25.2	≤ 0.1%	300mV	76mA	200mV	50mA	30mV	0.1	0.01	18Kg	85
EX300-12	0~315	0~12.6	≤ 0.1%	450mV	38mA	300mV	25mA	50mV	0.1	0.01	15Kg	85
EX300-16	0~315	0~16.8	≤ 0.1%	450mV	50mA	300mV	34mA	50mV	0.1	0.01	18Kg	85
EX600-3	0~630	0~3.15	≤ 0.1%	900mV	9mA	600mV	6mA	120mV	0.1	0.001	15Kg	85
EX600-4	0~630	0~4.2	≤ 0.1%	900mV	13mA	600mV	8mA	120mV	0.1	0.001	15Kg	85
EX600-6	0~630	0~6.3	≤ 0.1%	900mV	19mA	600mV	13mA	120mV	0.1	0.001	18Kg	85
EX600-8	0~630	0~8.4	≤ 0.1%	900mV	25mA	600mV	17mA	120mV	0.1	0.001	18Kg	85
4U Size 426mm(W)*176mm(H) : 6kW ~ 10kW
EX20-300	0~21	0~315	≤ 0.1%	30mV	945mA	20mV	630mA	30mV	0.01	0.1	26.5Kg	80
EX20-360	0~21	0~378	≤ 0.1%	30mV	1134mA	20mV	756mA	30mV	0.01	0.1	29Kg	80
EX20-420	0~21	0~441	≤ 0.1%	30mV	1323mA	20mV	882mA	30mV	0.01	0.1	31.5Kg	80
EX20-480	0~21	0~504	≤ 0.1%	30mV	1512mA	20mV	1008mA	30mV	0.01	0.1	34Kg	80
EX30-200	0~31.5	0~210	≤ 0.1%	45mV	630mA	30mV	420mA	30mV	0.01	0.1	26.5Kg	83
EX30-240	0~31.5	0~252	≤ 0.1%	45mV	756mA	30mV	504mA	30mV	0.01	0.1	29Kg	83
EX30-280	0~31.5	0~294	≤ 0.1%	45mV	882mA	30mV	588mA	30mV	0.01	0.1	31.5Kg	83
EX30-320	0~31.5	0~336	≤ 0.1%	45mV	1008mA	30mV	672mA	30mV	0.01	0.1	34Kg	83
EX50-120	0~52.5	0~26	≤ 0.1%	75mV	378mA	50mV	252mA	30mV	0.01	0.1	26.5Kg	85
EX50-144	0~52.5	0~151.2	≤ 0.1%	75mV	454mA	50mV	302mA	30mV	0.01	0.1	29Kg	85
EX50-168	0~52.5	0~176.4	≤ 0.1%	75mV	529mA	50mV	353mA	30mV	0.01	0.1	31.5Kg	85
EX50-192	0~52.5	0~201.6	≤ 0.1%	75mV	605mA	50mV	403mA	30mV	0.01	0.1	34Kg	85
EX60-100	0~63	0~105	≤ 0.1%	90mV	315mA	60mV	210mA	30mV	0.01	0.1	26.5Kg	85
EX60-120	0~63	0~126	≤ 0.1%	90mV	378mA	60mV	252mA	30mV	0.01	0.1	29Kg	85
EX60-140	0~63	0~147	≤ 0.1%	90mV	441mA	60mV	294mA	30mV	0.01	0.1	31.5Kg	85
EX60-160	0~63	0~168	≤ 0.1%	90mV	504mA	60mV	336mA	30mV	0.01	0.1	34Kg	85
EX80-75	0~84	0~78.75	≤ 0.1%	120mV	236mA	80mV	158mA	30mV	0.01	0.01	26.5Kg	85
EX80-90	0~84	0~94.5	≤ 0.1%	120mV	284mA	80mV	189mA	30mV	0.01	0.01	29Kg	85
EX80-105	0~84	0~110.25	≤ 0.1%	120mV	331mA	80mV	221mA	30mV	0.01	0.1	31.5Kg	85
EX80-120	0~84	0~126	≤ 0.1%	120mV	378mA	80mV	252mA	30mV	0.01	0.1	34Kg	85
EX100-60	0~105	0~63	≤ 0.1%	150mV	189mA	100mV	126mA	40mV	0.1	0.01	26.5Kg	85
EX100-72	0~105	0~75.6	≤ 0.1%	150mV	227mA	100mV	151mA	40mV	0.1	0.01	29Kg	85
EX100-84	0~105	0~88.2	≤ 0.1%	150mV	265mA	100mV	176mA	40mV	0.1	0.01	31.5Kg	85
EX100-96	0~105	0~100.8	≤ 0.1%	150mV	302mA	100mV	202mA	40mV	0.1	0.01	34Kg	85
EX150-40	0~157.5	0~42	≤ 0.1%	225mV	126mA	150mV	84mA	50mV	0.1	0.01	26.5Kg	85
EX150-48	0~157.5	0~50.4	≤ 0.1%	225mV	151mA	150mV	101mA	50mV	0.1	0.01	29Kg	85
EX150-56	0~157.5	0~58.8	≤ 0.1%	225mV	176mA	150mV	118mA	50mV	0.1	0.01	31.5Kg	85
EX150-64	0~157.5	0~67.2	≤ 0.1%	225mV	202mA	150mV	134mA	50mV	0.1	0.01	34Kg	85
EX200-30	0~210	0~31.5	≤ 0.1%	300mV	95mA	200mV	63mA	60mV	0.1	0.01	26.5Kg	85
EX200-36	0~210	0~37.8	≤ 0.1%	300mV	113mA	200mV	76mA	60mV	0.1	0.01	29Kg	85
EX200-42	0~210	0~44.1	≤ 0.1%	300mV	132mA	200mV	88mA	60mV	0.1	0.01	31.5Kg	85
EX200-48	0~210	0~50.4	≤ 0.1%	300mV	151mA	200mV	101mA	60mV	0.1	0.01	34Kg	85
EX300-20	0~315	0~21	≤ 0.1%	450mV	63mA	300mV	42mA	100mV	0.1	0.01	26.5Kg	85
EX300-24	0~315	0~25.2	≤ 0.1%	450mV	76mA	300mV	50mA	100mV	0.1	0.01	29Kg	85
EX300-28	0~315	0~29.4	≤ 0.1%	450mV	88mA	300mV	59mA	100mV	0.1	0.01	31.5Kg	85
EX300-32	0~315	0~33.6	≤ 0.1%	450mV	101mA	300mV	67mA	100mV	0.1	0.01	34Kg	85
EX600-10	0~630	0~10.5	≤ 0.1%	900mV	32mA	600mV	21mA	240mV	0.1	0.01	31Kg	85
EX600-12	0~630	0~12.6	≤ 0.1%	900mV	38mA	600mV	25mA	240mV	0.1	0.01	31Kg	85
EX600-14	0~630	0~14.7	≤ 0.1%	900mV	44mA	600mV	29mA	240mV	0.1	0.01	31.5Kg	85
EX600-16	0~630	0~16.8	≤ 0.1%	900mV	50mA	600mV	34mA	240mV	0.1	0.01	31.5Kg	85

옵션	액세서리
TCP/IP 통신 OUTPUT ON/OFF signal control Analog Input 제어 (DC 0~5V or 0~10V) & Analog Output 모니터링 (DC 0~5V or 0~10V), Isolated type AC Input 380V ±10%, 3-phase 4-wire system(R.S.T.N.G), 50~60Hz AC Input 220V ±10%, 3-phase 3-wire system(R.S.T.G), 50~60Hz	AC 파워 코드(Type F) 매뉴얼 Demo software 프로그램 Rack Mount Bracket

제품 사양 및 라인업

*표시된 제품은 CE인증된 모델입니다.

Parameter	Output Rating (@ 0℃ ~ 40℃)		Line&Load Regulation (%0.1+offset)	Programming Accuracy @25℃(@0.1+offset)		Readback Accuracy @25℃(@0.1+offset)		Ripple & Noise (@20Mhz)RMS Value	Display Resolution		Weight	Efficiency (Typical)
Model	V	A		V	A	V	A		V	A		%
1U Size 426mm(W)*44mm(H) : 600W ~ 2.5kW
EX20-30*	0~21	0~31.5	≤ 0.1%	30mV	95mA	20mV	63mA	10mV	0.01	0.01	6.25Kg	80
EX20-60*	0~21	0~63	≤ 0.1%	30mV	189mA	20mV	126mA	10mV	0.01	0.01	7.5Kg	80
EX20-90*	0~21	0~94.5	≤ 0.1%	30mV	284mA	20mV	189mA	10mV	0.01	0.01	8.75Kg	80
EX20-120*	0~21	0~126	≤ 0.1%	30mV	378mA	20mV	252mA	15mV	0.01	0.1	13Kg	80
EX30-20*	0~31.5	0~21	≤ 0.1%	45mV	63mA	30mV	42mA	10mV	0.01	0.01	6.25Kg	82
EX30-40*	0~31.5	0~42	≤ 0.1%	45mV	126mA	30mV	84mA	10mV	0.01	0.01	7.5Kg	82
EX30-60*	0~31.5	0~63	≤ 0.1%	45mV	189mA	30mV	126mA	10mV	0.01	0.01	8.75Kg	82
EX30-80*	0~31.5	0~84	≤ 0.1%	45mV	252mA	30mV	168mA	10mV	0.01	0.01	10Kg	82
EX50-12*	0~52.5	0~12.6	≤ 0.1%	75mV	38mA	50mV	25mA	10mV	0.01	0.01	6.25Kg	85
EX50-24*	0~52.5	0~25.2	≤ 0.1%	75mV	76mA	50mV	50mA	10mV	0.01	0.01	7.5Kg	85
EX50-36*	0~52.5	0~37.8	≤ 0.1%	75mV	113mA	50mV	76mA	10mV	0.01	0.01	8.75Kg	85
EX50-48*	0~52.5	0~50.4	≤ 0.1%	75mV	151mA	50mV	101mA	10mV	0.01	0.01	10Kg	85
EX60-10	0~63	0~10.5	≤ 0.1%	90mV	32mA	60mV	21mA	10mV	0.01	0.01	6.25Kg	85
EX60-20	0~63	0~21	≤ 0.1%	90mV	63mA	60mV	42mA	10mV	0.01	0.01	7.5Kg	85
EX60-30	0~63	0~31.5	≤ 0.1%	90mV	95mA	60mV	63mA	10mV	0.01	0.01	8.75Kg	85
EX60-40	0~63	0~42	≤ 0.1%	90mV	126mA	60mV	84mA	10mV	0.01	0.01	10Kg	85
EX80-7.5	0~84	0~7.875	≤ 0.1%	120mV	24mA	80mV	16mA	10mV	0.01	0.001	6.25Kg	85
EX80-15	0~84	0~15.75	≤ 0.1%	120mV	47mA	80mV	32mA	10mV	0.01	0.01	7.5Kg	85
EX80-22.5	0~84	0~23.6	≤ 0.1%	120mV	71mA	80mV	47mA	10mV	0.01	0.01	8.75Kg	85
EX80-30	0~84	0~31.5	≤ 0.1%	120mV	95mA	80mV	63mA	10mV	0.01	0.01	10Kg	85
EX100-6	0~105	0~6.3	≤ 0.1%	150mV	19mA	100mV	13mA	10mV	0.1	0.001	6.25Kg	85
EX100-12	0~105	0~12.6	≤ 0.1%	150mV	38mA	100mV	25mA	10mV	0.1	0.01	7.5Kg	85
EX100-18	0~105	0~18.9	≤ 0.1%	150mV	57mA	100mV	38mA	10mV	0.1	0.01	8.75Kg	85
EX100-24	0~105	0~25.2	≤ 0.1%	150mV	76mA	100mV	50mA	10mV	0.1	0.01	10Kg	85
EX150-4	0~157.5	0~4.2	≤ 0.1%	225mV	13mA	150mV	8mA	15mV	0.1	0.001	6.25Kg	85
EX150-8	0~157.5	0~8.4	≤ 0.1%	225mV	25mA	150mV	17mA	15mV	0.1	0.001	7.5Kg	85
EX150-12	0~157.5	0~12.6	≤ 0.1%	225mV	38mA	150mV	25mA	15mV	0.1	0.01	8.75Kg	85
EX150-16	0~157.5	0~16.8	≤ 0.1%	225mV	50mA	150mV	34mA	15mV	0.1	0.01	10Kg	85
EX200-3	0~210	0~3.15	≤ 0.1%	300mV	9mA	200mV	6mA	15mV	0.1	0.001	6.25Kg	85
EX200-6	0~210	0~6.3	≤ 0.1%	300mV	19mA	200mV	13mA	15mV	0.1	0.001	7.5Kg	85
EX200-9	0~210	0~9.45	≤ 0.1%	300mV	28mA	200mV	19mA	15mV	0.1	0.001	8.75Kg	85
EX200-12	0~210	0~12.6	≤ 0.1%	300mV	38mA	200mV	25mA	15mV	0.1	0.01	10Kg	85
EX300-2*	0~315	0~2.1	≤ 0.1%	450mV	6mA	300mV	4mA	25mV	0.1	0.001	6.25Kg	85
EX300-4*	0~315	0~4.2	≤ 0.1%	450mV	13mA	300mV	8mA	25mV	0.1	0.001	7.5Kg	85
EX300-6*	0~315	0~6.3	≤ 0.1%	450mV	19mA	300mV	13mA	25mV	0.1	0.001	8.75Kg	85
EX300-8*	0~315	0~8.4	≤ 0.1%	450mV	25mA	300mV	17mA	25mV	0.1	0.001	10Kg	85
EX600-1	0~630	0~1.05	≤ 0.1%	900mV	3mA	600mV	2mA	60mV	0.1	0.001	8.75Kg	85
EX600-2	0~630	0~2.1	≤ 0.1%	900mV	6mA	600mV	4mA	60mV	0.1	0.001	8.75Kg	85
2U Size 426mm(W)*88mm(H) : 3.75KW ~ 5KW
EX20-180	0~21	0~189	≤ 0.1%	30mV	567mA	20mV	378mA	15mV	0.01	0.1	15.5Kg	80
EX20-240	0~21	0~252	≤ 0.1%	30mV	756mA	20mV	504mA	15mV	0.01	0.1	18Kg	80
EX30-120*	0~31.5	0~126	≤ 0.1%	45mV	378mA	30mV	252mA	15mV	0.01	0.1	15.5Kg	82
EX30-160*	0~31.5	0~168	≤ 0.1%	45mV	504mA	30mV	336mA	15mV	0.01	0.1	18Kg	82
EX50-72	0~52.5	0~75.6	≤ 0.1%	75mV	227mA	50mV	151mA	15mV	0.01	0.01	15.5Kg	85
EX50-96	0~52.5	0~100.8	≤ 0.1%	75mV	302mA	50mV	202mA	15mV	0.01	0.01	18Kg	85
EX60-60	0~63	0~63	≤ 0.1%	90mV	189mA	60mV	126mA	15mV	0.01	0.01	15.5Kg	85
EX60-80	0~63	0~84	≤ 0.1%	90mV	252mA	60mV	168mA	15mV	0.01	0.01	18Kg	85
EX80-45	0~84	0~47.25	≤ 0.1%	120mV	142mA	80mV	95mA	15mV	0.01	0.01	15.5Kg	85
EX80-60	0~84	0~63	≤ 0.1%	120mV	189mA	80mV	126mA	15mV	0.01	0.01	18Kg	85
EX100-36	0~105	0~36	≤ 0.1%	150mV	113mA	100mV	76mA	15mV	0.1	0.01	15.5Kg	85
EX100-48	0~105	0~50.4	≤ 0.1%	150mV	151mA	100mV	101mA	15mV	0.1	0.01	18Kg	85
EX150-24	0~157.5	0~25.2	≤ 0.1%	225mV	76mA	150mV	50mA	15mV	0.1	0.01	15.5Kg	85
EX150-32	0~157.5	0~33.6	≤ 0.1%	225mV	101mA	150mV	67mA	15mV	0.1	0.01	18Kg	85
EX200-18	0~210	0~18.9	≤ 0.1%	300mV	57mA	200mV	38mA	30mV	0.1	0.01	15Kg	85
EX200-24	0~210	0~25.2	≤ 0.1%	300mV	76mA	200mV	50mA	30mV	0.1	0.01	18Kg	85
EX300-12	0~315	0~12.6	≤ 0.1%	450mV	38mA	300mV	25mA	50mV	0.1	0.01	15Kg	85
EX300-16	0~315	0~16.8	≤ 0.1%	450mV	50mA	300mV	34mA	50mV	0.1	0.01	18Kg	85
EX600-3	0~630	0~3.15	≤ 0.1%	900mV	9mA	600mV	6mA	120mV	0.1	0.001	15Kg	85
EX600-4	0~630	0~4.2	≤ 0.1%	900mV	13mA	600mV	8mA	120mV	0.1	0.001	15Kg	85
EX600-6	0~630	0~6.3	≤ 0.1%	900mV	19mA	600mV	13mA	120mV	0.1	0.001	18Kg	85
EX600-8	0~630	0~8.4	≤ 0.1%	900mV	25mA	600mV	17mA	120mV	0.1	0.001	18Kg	85
4U Size 426mm(W)*176mm(H) : 6kW ~ 10kW
EX20-300	0~21	0~315	≤ 0.1%	30mV	945mA	20mV	630mA	30mV	0.01	0.1	26.5Kg	80
EX20-360	0~21	0~378	≤ 0.1%	30mV	1134mA	20mV	756mA	30mV	0.01	0.1	29Kg	80
EX20-420	0~21	0~441	≤ 0.1%	30mV	1323mA	20mV	882mA	30mV	0.01	0.1	31.5Kg	80
EX20-480	0~21	0~504	≤ 0.1%	30mV	1512mA	20mV	1008mA	30mV	0.01	0.1	34Kg	80
EX30-200	0~31.5	0~210	≤ 0.1%	45mV	630mA	30mV	420mA	30mV	0.01	0.1	26.5Kg	83
EX30-240	0~31.5	0~252	≤ 0.1%	45mV	756mA	30mV	504mA	30mV	0.01	0.1	29Kg	83
EX30-280	0~31.5	0~294	≤ 0.1%	45mV	882mA	30mV	588mA	30mV	0.01	0.1	31.5Kg	83
EX30-320	0~31.5	0~336	≤ 0.1%	45mV	1008mA	30mV	672mA	30mV	0.01	0.1	34Kg	83
EX50-120	0~52.5	0~26	≤ 0.1%	75mV	378mA	50mV	252mA	30mV	0.01	0.1	26.5Kg	85
EX50-144	0~52.5	0~151.2	≤ 0.1%	75mV	454mA	50mV	302mA	30mV	0.01	0.1	29Kg	85
EX50-168	0~52.5	0~176.4	≤ 0.1%	75mV	529mA	50mV	353mA	30mV	0.01	0.1	31.5Kg	85
EX50-192	0~52.5	0~201.6	≤ 0.1%	75mV	605mA	50mV	403mA	30mV	0.01	0.1	34Kg	85
EX60-100	0~63	0~105	≤ 0.1%	90mV	315mA	60mV	210mA	30mV	0.01	0.1	26.5Kg	85
EX60-120	0~63	0~126	≤ 0.1%	90mV	378mA	60mV	252mA	30mV	0.01	0.1	29Kg	85
EX60-140	0~63	0~147	≤ 0.1%	90mV	441mA	60mV	294mA	30mV	0.01	0.1	31.5Kg	85
EX60-160	0~63	0~168	≤ 0.1%	90mV	504mA	60mV	336mA	30mV	0.01	0.1	34Kg	85
EX80-75	0~84	0~78.75	≤ 0.1%	120mV	236mA	80mV	158mA	30mV	0.01	0.01	26.5Kg	85
EX80-90	0~84	0~94.5	≤ 0.1%	120mV	284mA	80mV	189mA	30mV	0.01	0.01	29Kg	85
EX80-105	0~84	0~110.25	≤ 0.1%	120mV	331mA	80mV	221mA	30mV	0.01	0.1	31.5Kg	85
EX80-120	0~84	0~126	≤ 0.1%	120mV	378mA	80mV	252mA	30mV	0.01	0.1	34Kg	85
EX100-60	0~105	0~63	≤ 0.1%	150mV	189mA	100mV	126mA	40mV	0.1	0.01	26.5Kg	85
EX100-72	0~105	0~75.6	≤ 0.1%	150mV	227mA	100mV	151mA	40mV	0.1	0.01	29Kg	85
EX100-84	0~105	0~88.2	≤ 0.1%	150mV	265mA	100mV	176mA	40mV	0.1	0.01	31.5Kg	85
EX100-96	0~105	0~100.8	≤ 0.1%	150mV	302mA	100mV	202mA	40mV	0.1	0.01	34Kg	85
EX150-40	0~157.5	0~42	≤ 0.1%	225mV	126mA	150mV	84mA	50mV	0.1	0.01	26.5Kg	85
EX150-48	0~157.5	0~50.4	≤ 0.1%	225mV	151mA	150mV	101mA	50mV	0.1	0.01	29Kg	85
EX150-56	0~157.5	0~58.8	≤ 0.1%	225mV	176mA	150mV	118mA	50mV	0.1	0.01	31.5Kg	85
EX150-64	0~157.5	0~67.2	≤ 0.1%	225mV	202mA	150mV	134mA	50mV	0.1	0.01	34Kg	85
EX200-30	0~210	0~31.5	≤ 0.1%	300mV	95mA	200mV	63mA	60mV	0.1	0.01	26.5Kg	85
EX200-36	0~210	0~37.8	≤ 0.1%	300mV	113mA	200mV	76mA	60mV	0.1	0.01	29Kg	85
EX200-42	0~210	0~44.1	≤ 0.1%	300mV	132mA	200mV	88mA	60mV	0.1	0.01	31.5Kg	85
EX200-48	0~210	0~50.4	≤ 0.1%	300mV	151mA	200mV	101mA	60mV	0.1	0.01	34Kg	85
EX300-20	0~315	0~21	≤ 0.1%	450mV	63mA	300mV	42mA	100mV	0.1	0.01	26.5Kg	85
EX300-24	0~315	0~25.2	≤ 0.1%	450mV	76mA	300mV	50mA	100mV	0.1	0.01	29Kg	85
EX300-28	0~315	0~29.4	≤ 0.1%	450mV	88mA	300mV	59mA	100mV	0.1	0.01	31.5Kg	85
EX300-32	0~315	0~33.6	≤ 0.1%	450mV	101mA	300mV	67mA	100mV	0.1	0.01	34Kg	85
EX600-10	0~630	0~10.5	≤ 0.1%	900mV	32mA	600mV	21mA	240mV	0.1	0.01	31Kg	85
EX600-12	0~630	0~12.6	≤ 0.1%	900mV	38mA	600mV	25mA	240mV	0.1	0.01	31Kg	85
EX600-14	0~630	0~14.7	≤ 0.1%	900mV	44mA	600mV	29mA	240mV	0.1	0.01	31.5Kg	85
EX600-16	0~630	0~16.8	≤ 0.1%	900mV	50mA	600mV	34mA	240mV	0.1	0.01	31.5Kg	85

옵션	액세서리
TCP/IP 통신 OUTPUT ON/OFF signal control Analog Input 제어 (DC 0~5V or 0~10V) & Analog Output 모니터링 (DC 0~5V or 0~10V), Isolated type AC Input 380V ±10%, 3-phase 4-wire system(R.S.T.N.G), 50~60Hz AC Input 220V ±10%, 3-phase 3-wire system(R.S.T.G), 50~60Hz	AC 파워 코드(Type F) 매뉴얼 Demo software 프로그램 Rack Mount Bracket

제품소개

EX Series

SLIM TYPE

PROTECTION MODE

DUAL CONTROL ENCODER

MEMORY STORE & RECALL

Site Information
