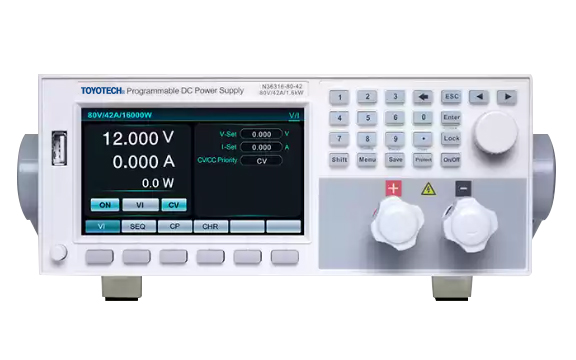

N36300 Series

Main Features

N36300 series is a DC power supply with desktop design, high performance and high power density. It offers high-speed dynamic response, precise output and measurement, and supports multiple communication options. Housed in a 2U height ½19-inch width chassis, the N36300 series ensures accurate, reliable, and efficient testing for lab, system integration, and production applications.

Application Fields

• R&D, design and verification
• ATE Testing System
• Aerospace Electronic
• Battery Application
• Automotive Electronic
• Consumer Electronics and Industrial Electronic Device

Functions & Advantages

• Desktop design, supporting front and rear panel output
• Wide output range, one unit replaces multiple power supplies
• High-speed dynamic response, voltage rise/fall time≤10ms
• Voltage Accuracy: 0.03%+0.02% F.S.
• Current Accuracy: 0.1%+0.1% F.S.
• Adjustable voltage/current slopes for diverse requirements
• 4.3-inch HD Color Screen, with local/remote control, dedicated software included
• Support car wave simulation
• CC & CV priority
• Standard with SEQ test,Charge test and SRetc.
• ½ 19-inch 2U Design, for benchtop and integration use

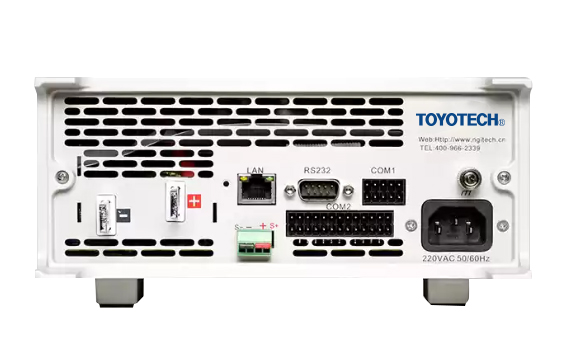

• Support LAN, RS232, RS485, CAN communication control
• Support Modbus-RTU/SCPI/CANopen communication protocol

SEQ mode for test sequences

N36300 supports complex waveforms, storing up to 10 sequences and 1000 steps for long-term verification and waveform testing.

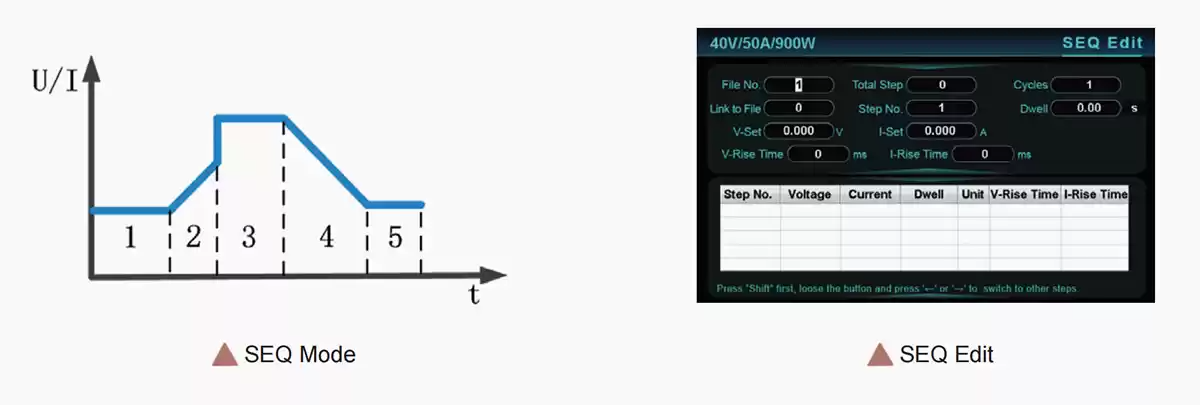

Test Edit with total steps, cycle times, link to file, step No., voltage, current, and dwell.

CC&CV priority function

N36300 has the function of selecting priority of voltage-control loop or current-control loop, which enables N36300 to adopt the optimal test mode for different DUTs, and thus protect the DUT.

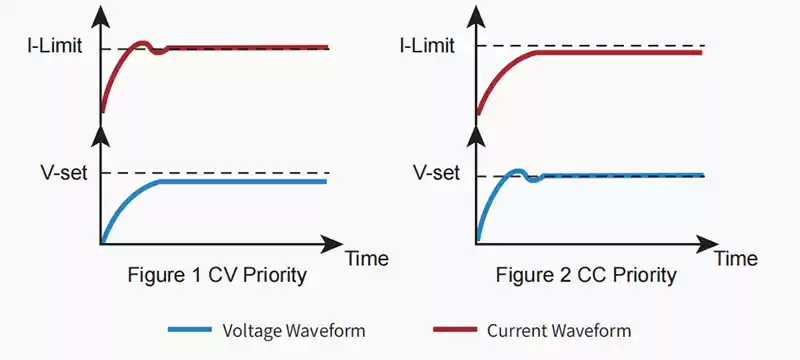

As shown in figure one, when the DUT requires reducing voltage overshoot during test, such as supplying power to a low-voltage processor or FPGA core, voltage priority mode should be selected to obtain fast and smooth rise voltage.

As shown in figure two, when the DUT requires reducing current overshoot during test, or when the DUT is with low impedance, such as battery charging scenario, current priority mode should be selected to obtain fast and smooth rise current.

Car waveform simulation for electronics performance test

With the application of automotive electronics increasing every year, car manufacturers have formulated relevant test specifications, which focus on testing the immunity of electronic equipment to interference under certain scenarios of power transients, so that when designing automotive electronic hardware, it is important to set protections to avoid the effects of extreme situations.

N36300 series can be standard with car waveform simulation, including car start-up waveform, car short-time voltage drop waveform, load dump waveform, car voltage reset test Waveform etc., meeting ISO16750-2, LV124 and other standards, used for electronics electric performance test.

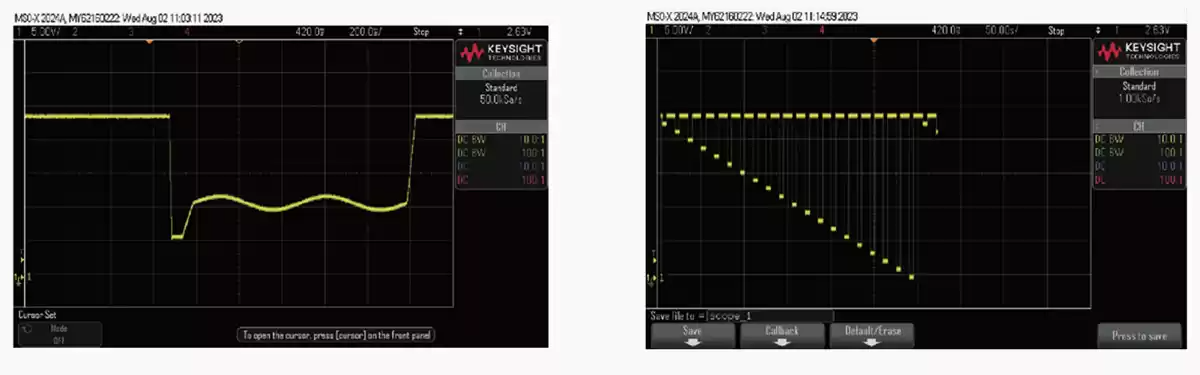

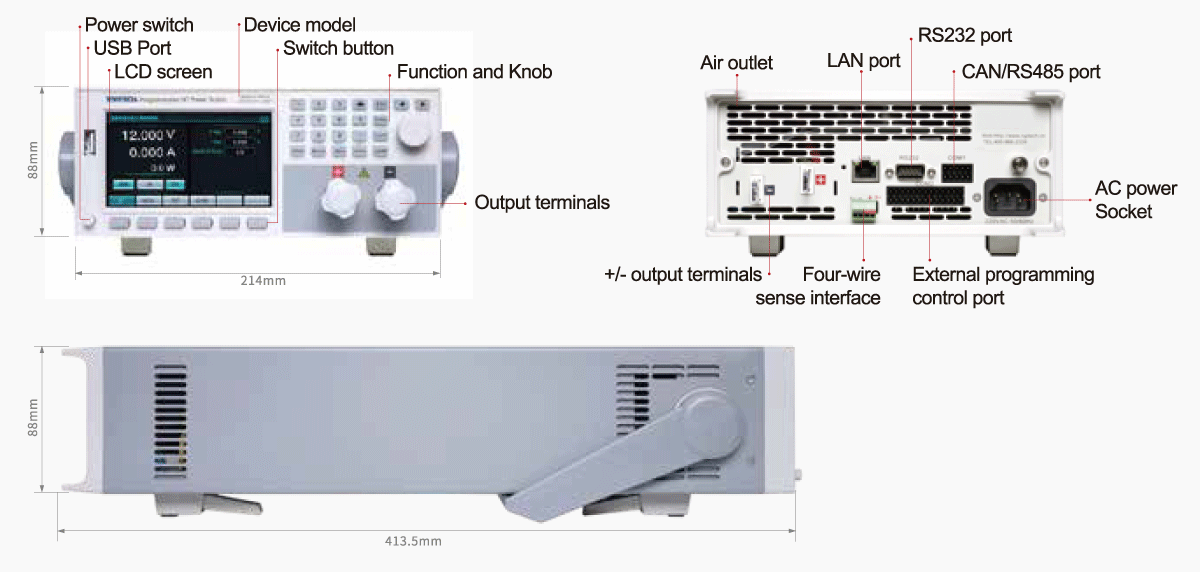

Product Dimension

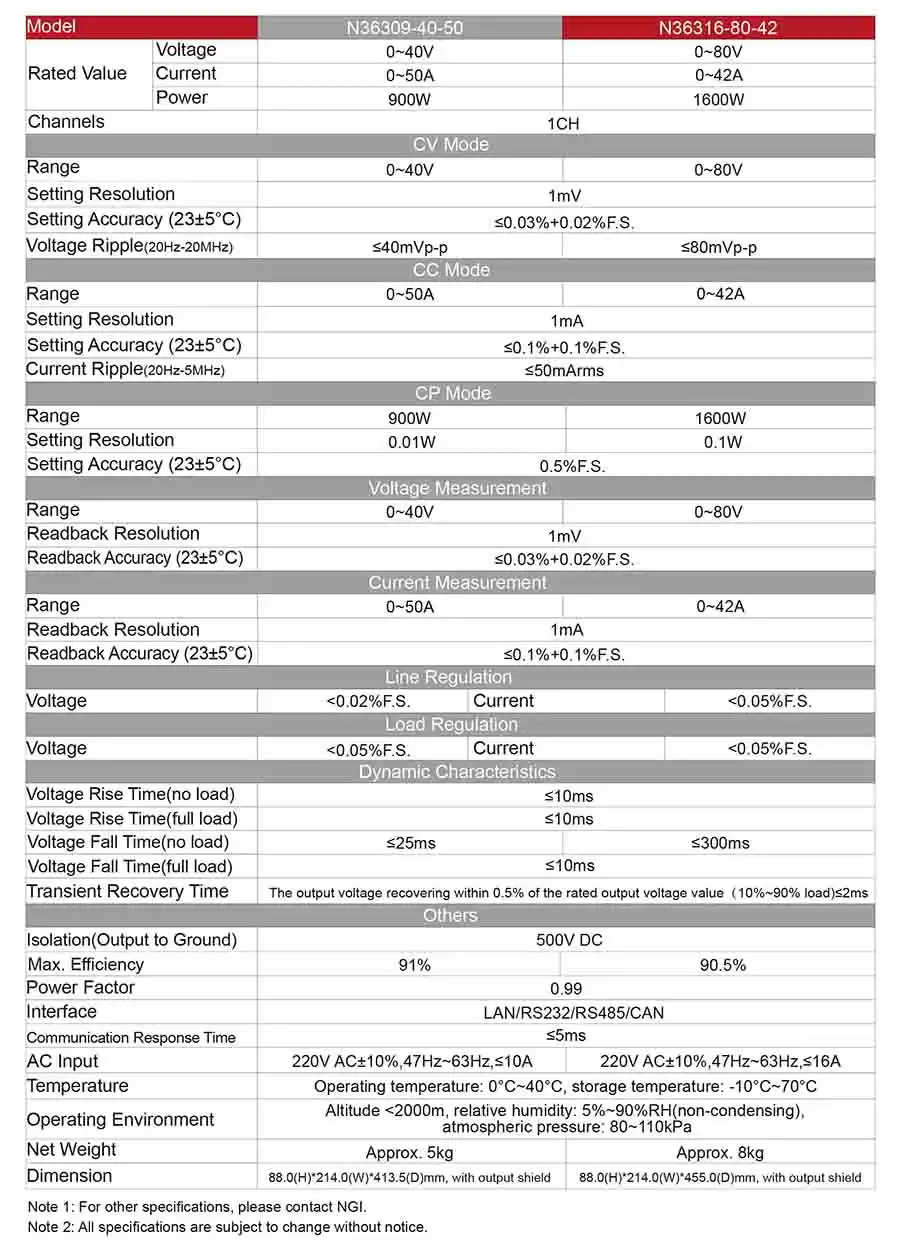

Technical Data Sheet
